Thermo Ramsey 60-32F

Thermo Ramsey 60-32F product information

60-32F is the legacy F-series Pro-Line position limit switch. The actuator uses a contact wheel on an external lever so moving machinery can rotate the shaft and operate the internal microswitches.

Manufacturer-documented specifications

• External lever position can be adjusted to suit horizontal, vertical or inclined mounting.
• The manufacturer’s successor 60-32G manual states an operating angle of 18° ±2°.
• The successor manual documents two microswitches, each with one NC and one NO contact.
• The manufacturer’s successor-family manual describes an aluminium housing and cam-operated microswitch construction; the exact 60-32F wiring must be checked against its original drawing or terminal markings.

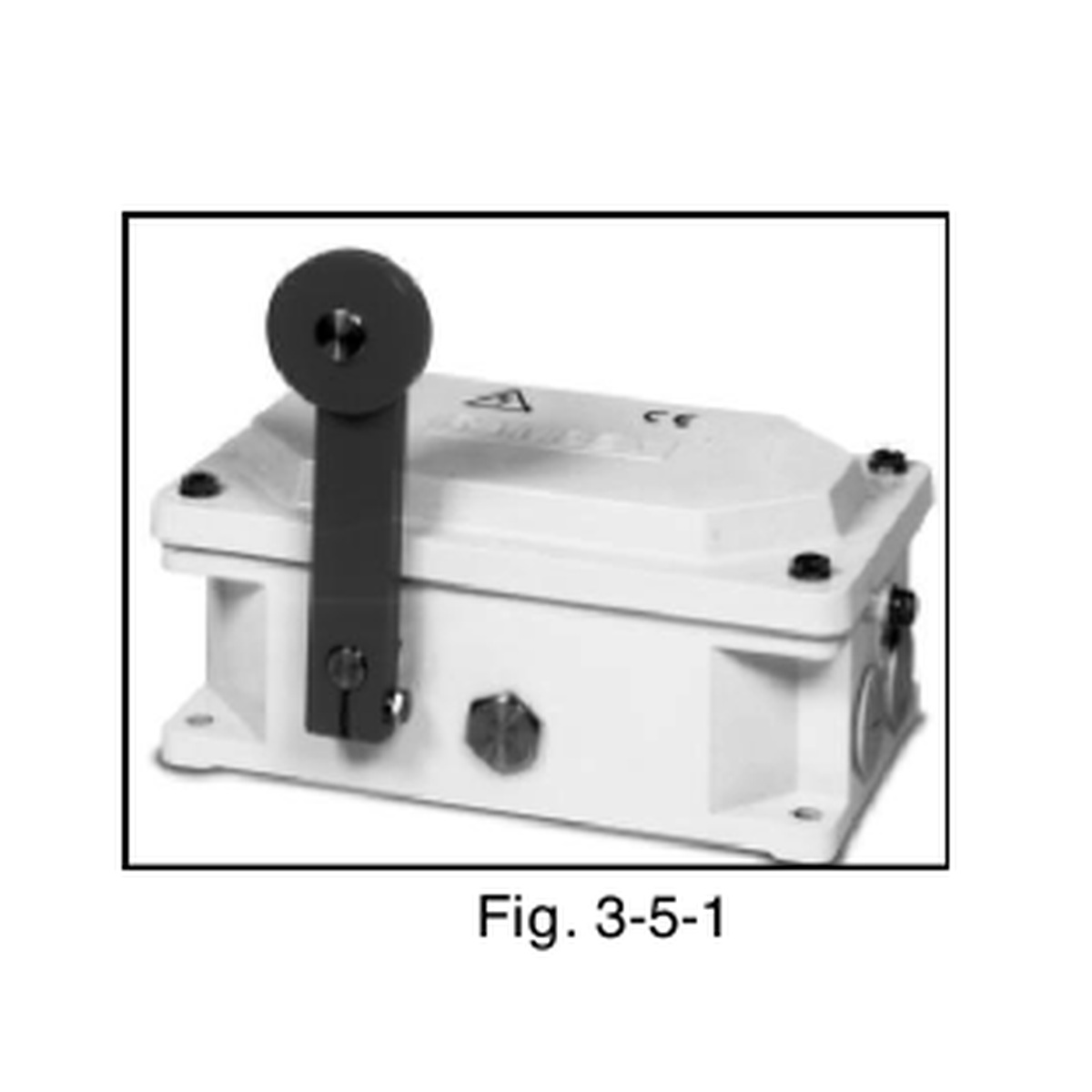

The featured image is the official manufacturer-manual photograph of the successor 60-32G family configuration, not an invented or AI-generated 60-32F image.

Manufacturer source: Thermo Ramsey Italia Pro-Line manufacturer manual (document mirror)
